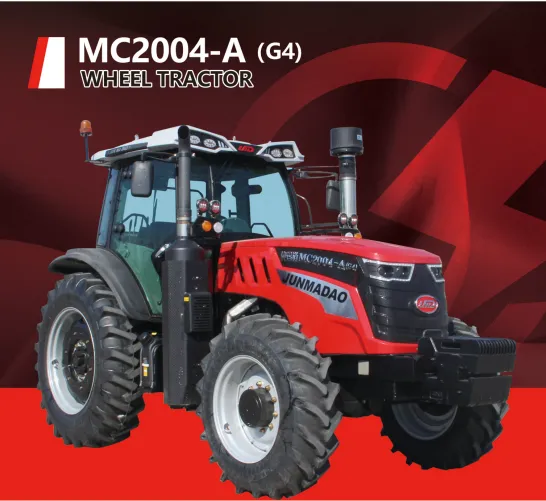

MC2004-A WHEEL TRACTOR
- 30%

MC2004-A WHEEL TRACTOR

Current price is: $20,000.00. Original price was: $28,500.00.

The brand new 360 Huanying cab has strong air tightness, good sound insulation effect, and a wider field of vision.;

Grammer seat, ergonomic design, reduce driving fatigue:

Manganese steel has a complete range of brackets and connecting plates, with strong carrying capacity and durability.;

The whole system of hydraulic system is designed to reduce pressure loss, improve cleanliness, and extend service life;

Independent research and development of mechanical power-assisted clutch control mechanism, light operation, reliable and durable;

Independent research and development of cooling system, large cooling area, continuous operation without high temperature;

With a chassis to dissipate heat, the test drive is stable, the noise is low, and the life is longer.;

16+8 synchronizer gear gearbox, which can realize the requirements of a variety of operating conditions;

The chassis adopts large-modulus Gleason arc reinforced gears, which have high traction and strong bearing capacity.;

The 500L oversized fuel tank reduces the refueling time and the continuous operation time is longer.

Tractor model MC2004-A
Engine model WP6G220E476
Engine type Vertical, in-line, water-cooled, four-stroke
Engine calibration power KW 147
Calibrated speed R/min 2200
Dimensions (length X width X height) mm 5320x2300x3150 (air filter top)
Wheel track mm (rear wheel) 1600-2100
Tire specifications (front wheel) 14.9-28
Tire specifications (rear wheel) 18.4-38
clutch Dry type, double-piece, double-acting
gearbox Constituent 4x2x (2+1)
Central drive Spiral bevel gear type/spiral bevel gear type
Final drive Single-stage planetary gear pair/single-stage planetary gear pair
Steering system Full hydraulic steering
Brake type Disc type, hydraulic boost
Suspension device type Rear three-point suspension
Power output shaft speed R/min 760/850
